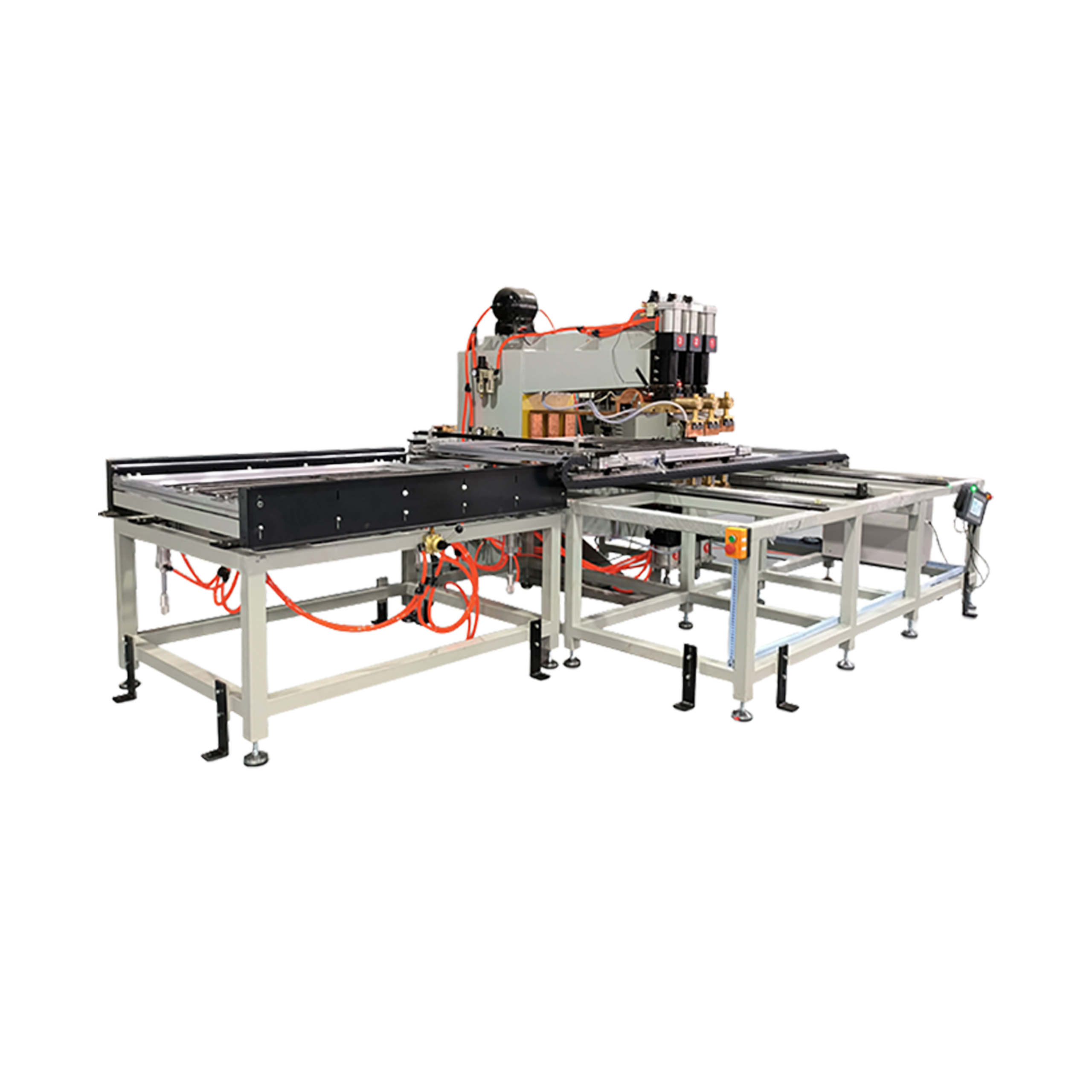

XY-Axis Automated Mesh Welding System

XY-Axis Automated Mesh Welding System | Metal Grid & Cage Fabrication

Dual-axis precision positioning

Simultaneous multi-point welding

Clean welds without post-processing

Support customization to suit grid requirements of different sizes

Brand

FUDA

Origin

Foshan, Guangdong, China

Warranty Period

1 Years

Applicable Industries

Manufacturing Plant

Technical Advantages

XY-Axis Automatic Welder utilizes a programmable Cartesian coordinate system to position and weld grid points sequentially with electrode automation. Advantages include high-throughput precision for mesh panels/cages and dimensional repeatability. Essential for Barbecue grills, bird cages, fences, and wire container manufacturing. Welds carbon steel wires, stainless steel mesh, galvanized iron, and aluminum alloy frameworks.

Buying Process

1

Inquiry

2

Spec Validation

3

Order Execution

4

Logistics

Technical Specifications

Usually this machine is customized and the parameters are determined according to the size of the customer’s product.

Model	PNXY-100×3
Voltage	380V, 2 Phase, 50/60Hz
Rated Capacity	100kVA
Short Circuit Current	28500A
Electrode Pressure	980kgf
Cooling Water	10L/min

* Swipe left/right or scroll horizontally to view complete specifications.

Core Components

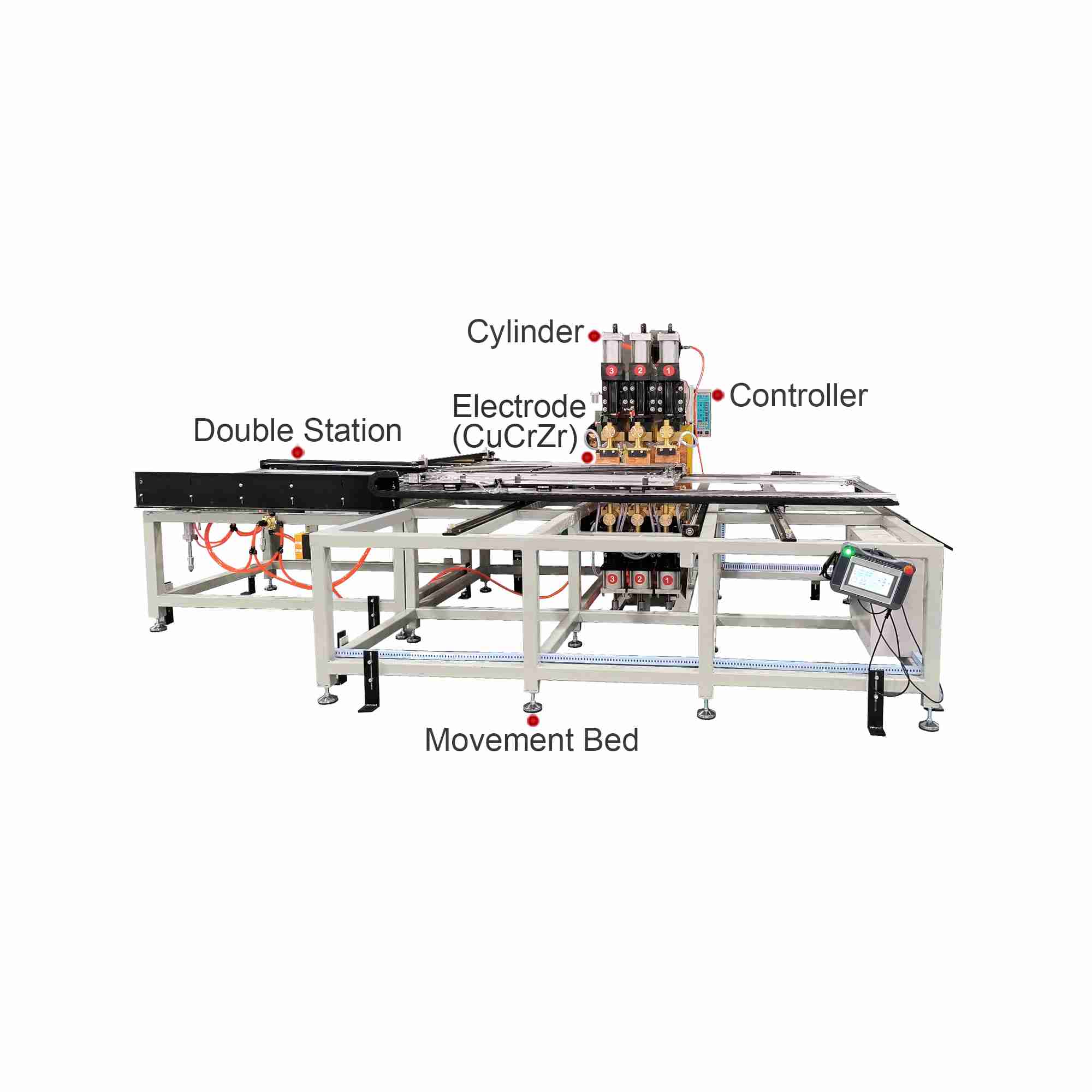

XY-Axis Automated Mesh Welding System composition

Cylinder

Hydraulic unit providing actuation force for welding electrodes

Controller

Touch screen regulator managing welding power parameters

Electrode (CuCrZr)

Copper-chromium-zirconium tips for current transfer

Double Station

Enables simultaneous dual-side operation.

Movement Bed

Supports and transports workpieces.

Welding Sample
