Flexible welding gun. Adapts to complex contours and shapes
True portability. <0.3㎡ with ergonomic carry handles
Industrial-grade bonds
Multi-material compatibility. Steel/stainless/aluminum

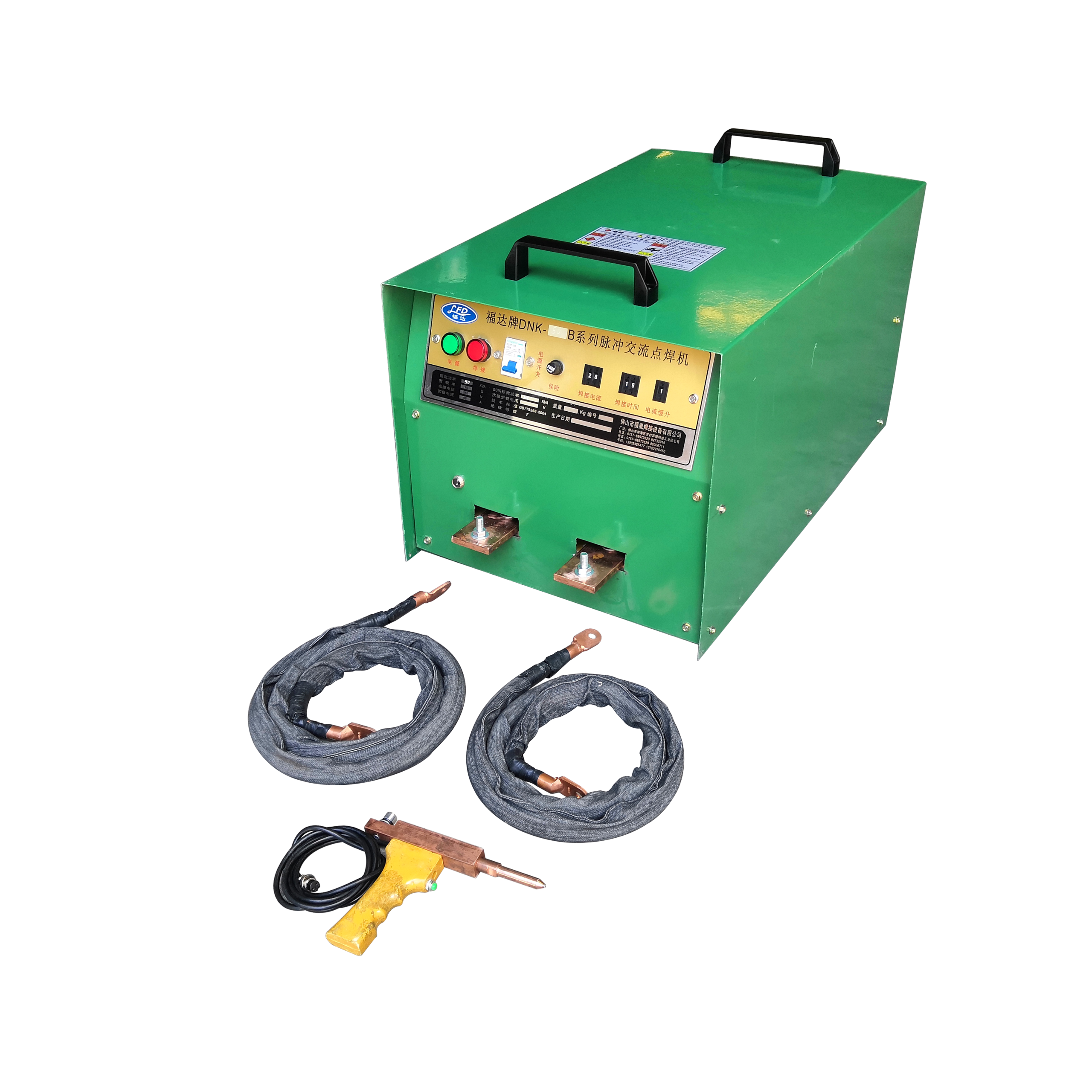

Portable Spot Welder utilizes compact transformer technology for portable resistance welding, enabling handheld electrode operation with flexibility. Key advantages include mobility for field operations, optional electrodes, and rapid setup capability. Ideal for sheet metal fabrication, electrical cabinet assembly, ventilation duct repairs, and thin-gauge container welding. Suitable for steel plates, stainless steel cabinets, aluminum ducts, and galvanized components.
| Model | DNK-20S | DNK-25S | DNK-35S | DNK-50S |
|---|---|---|---|---|
| Rated Voltage | 380V, 2 Phase, 50/60Hz | 380V, 2 Phase, 50/60Hz | 380V, 2 Phase, 50/60Hz | 380V, 2 Phase, 50/60Hz |
| Rated Capacity | 20kVA | 25kVA | 35kVA | 50kVA |
| Welding Capacity (mild steel wire) | 7.0mm + 7.0mm | 8.0mm + 8.0mm | 9.0mm + 9.0mm | 10mm + 10mm |
| Welding Capacity (mild steel sheet) | 2.2mm + 2.2mm | 2.5mm + 2.5mm | 3.5mm + 3.5mm | 3.8mm + 3.8mm |
| Duty Cycle | 20% | 20% | 20% | 20% |
* Swipe left/right or scroll horizontally to view complete specifications.
