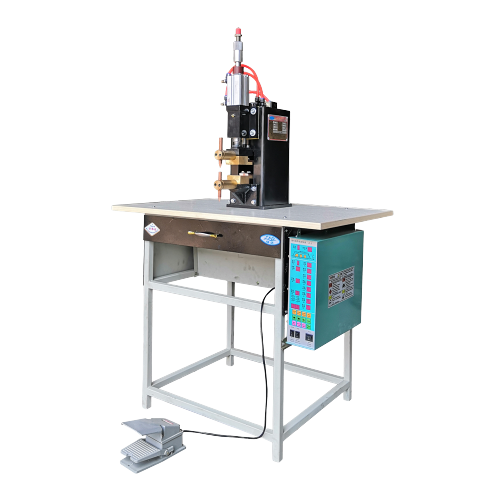

BenchTop AC Spot Welding Machine

BenchTop AC Spot Welding Machine

Space-Saving Bench Design

Low equipment cost & Easy maintenance.

Stable electrode force

Minimal workpiece deformation

Customizable versatile electrode shapes

Brand

FUDA

Origin

Foshan, Guangdong, China

Warranty Period

1 Years

Applicable Industries

Manufacturing Plant

Technical Advantages

Bench AC Spot Welder operates by transforming mains voltage into low-voltage, high-current alternating electricity that generates localized resistance heat between electrode tips and workpieces. Advantages include simple operation, cost-effective maintenance, and versatile portability for compact workshops. Widely used in sheet metal fabrication, small hardware assembly, and electronic component repair/maintenance. Suitable for joining mild steel, stainless steel, galvanized sheets, brass, and bronze components.

Buying Process

1

Inquiry

2

Spec Validation

3

Order Execution

4

Logistics

Technical Specifications

Model	DN4-10	DN4-16	DN4-30
Voltage	380V, 2 Phase, 50/60Hz
Rated Capacity (kva)	10	16	30
Electrode Pressure (kgf)	157	157	270
Electrode Distance (mm)	60	60	60
Arm Length (mm)	100	100	150
Welding Capacity SS Wire (mm)	2.5+2.5	3.0+3.0	6.0+6.0
Welding Capacity SS Sheet (mm)	1.2+1.2	1.5+1.5	2.0+2.0

* Swipe left/right or scroll horizontally to view complete specifications.

Core Components

Cylinder

Hydraulic unit providing actuation force for welding electrodes

Electrode (CuCrZr)

Copper-chromium-zirconium tips for current transfer

Solenoid Valve

Pneumatic flow controller for actuator movement

Microcomputer

Manages and automates welding operations.

Foot Switch

Operator control pedal for precise welding activation

Welding Sample
