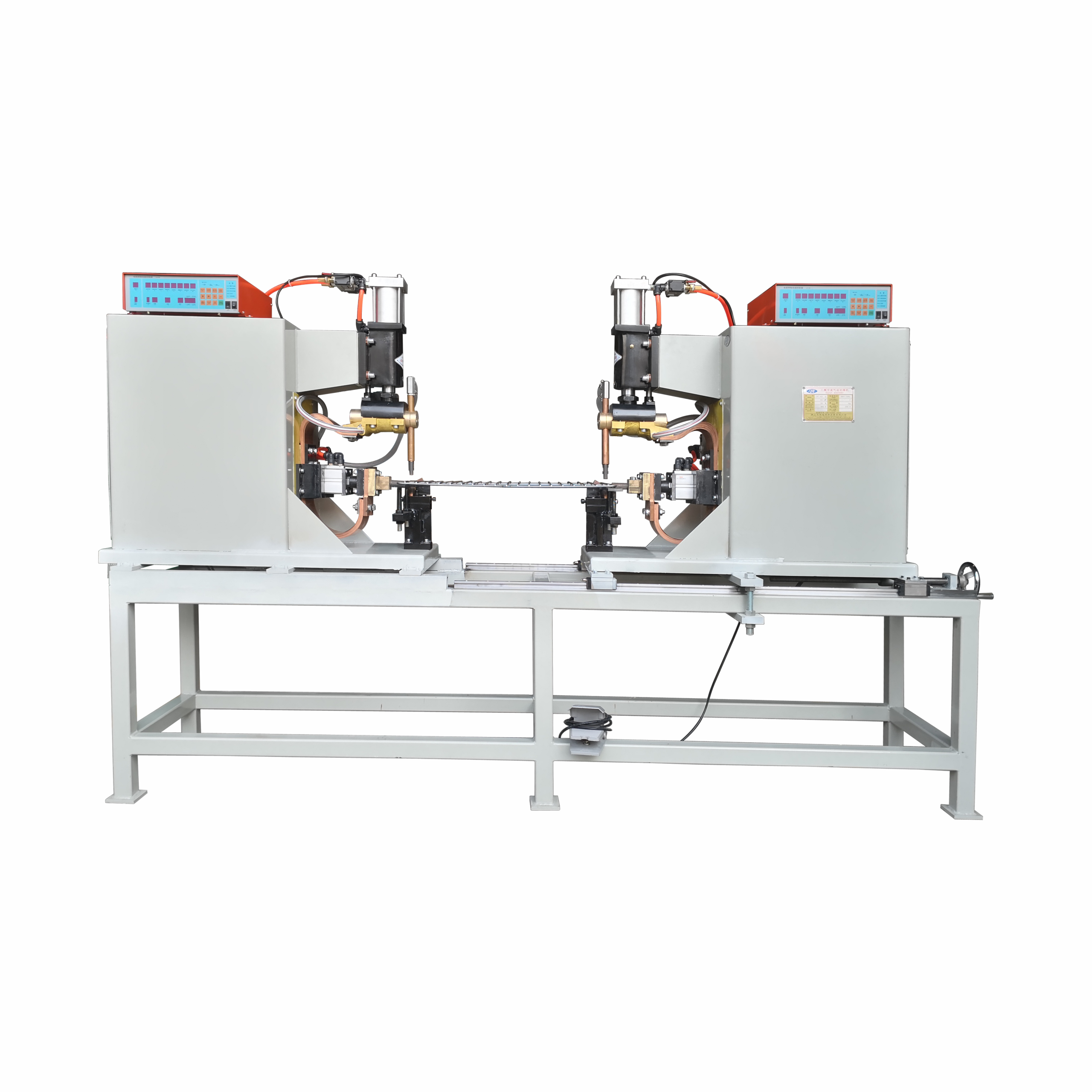

Simultaneous Dual-Electrode Welding
Flush Joint Technology. Zero-overlap welds
Customizable Clamping System
Distortion-Free Welding
Industrial Strength Bonds
| Model | DTN-50QH | DTN-63QH | DTN-80QH | DTN-100QH |
| Rated Voltage | 380V,2 Phase,50/60Hz | 380V,2 Phase,50/60Hz | 380V,2 Phase,50/60Hz | 380V,2 Phase,50/60Hz |
| Rated Capacity | 50kVA | 63kVA | 80kVA | 100kVA |
| Welding Capacity (mild steel wire) | ≤6mm | ≤8mm | ≤12mm | ≤14mm |
| Arm Length | 500mm | 500mm | 500mm | 500mm |
| Max. Electrode Pressure | 620kgf | 620kgf | 620kgf | 620kgf |
| Electrode Stroke | 60mm | 60mm | 60mm | 60mm |
| Duty Cycle | 20% | 20% | 20% | 20% |
* Swipe left/right or scroll horizontally to view complete specifications.
