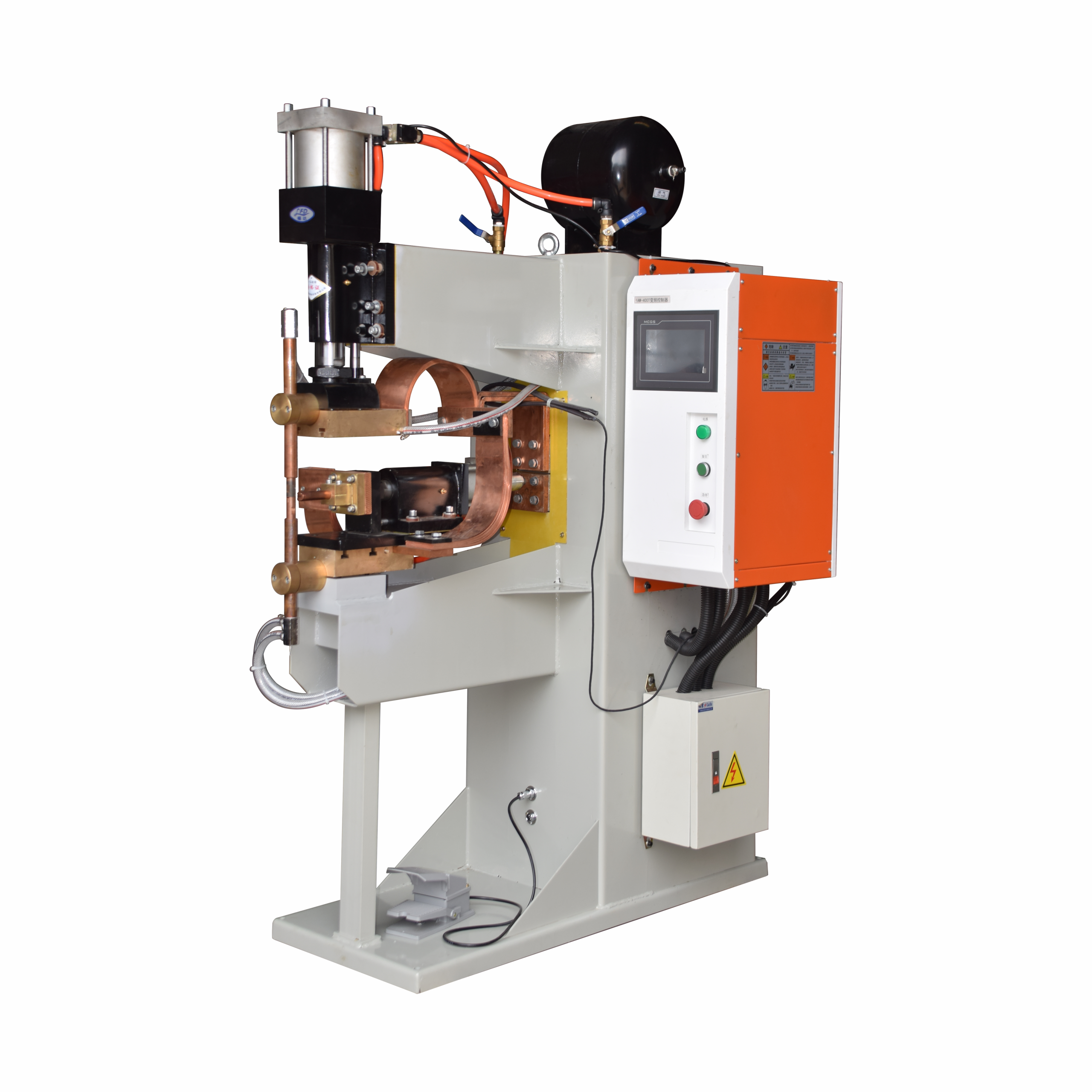

MFDC Precision Butt Welding Machine

MFDC Precision Butt Welding Machine

Flush Joint Technology. Zero-overlap welds

Customizable Clamping System

Precise current control & high stability

High energy efficiency

Consistent electrode force, minimal workpiece deformation

Brand

FUDA

Origin

Foshan, Guangdong, China

Warranty Period

1 Years

Applicable Industries

Manufacturing Plant

Technical Advantages

MFDC Butt Welder employs medium-frequency DC current to generate concentrated resistance heat at precisely aligned workpiece interfaces, ensuring rapid fusion. Key advantages include superior dimensional accuracy, energy efficiency, and minimal material oxidation. Effectively welds carbon steels, stainless steel tubes/pipes, copper busbars, aluminum conductors, and dissimilar metal combinations like copper-aluminum terminals.

Buying Process

1

Inquiry

2

Spec Validation

3

Order Execution

4

Logistics

Technical Specifications

Model	DIU-90	DIU-120	DIU-160	DIU-200
Rated Voltage	380V, 3 Phase, 50/60Hz
Rated Capacity	90kVA	120kVA	160kVA	200kVA
Welding Capacity (aluminum sheet/copper sheet)	2.0mm+2.0mm	2.2mm+2.2mm	2.5mm+2.5mm	2.8mm+2.8mm
Arm Length	450mm	450mm	450mm	450mm
Max. Electrode Pressure	620N	620N	980N	980N
Electrode Stroke	60mm	60mm	60mm	60mm
Duty Cycle	20%	20%	20%	20%
Water Flow	12L/min	12L/min	12L/min	14L/min

* Swipe left/right or scroll horizontally to view complete specifications.

Core Components

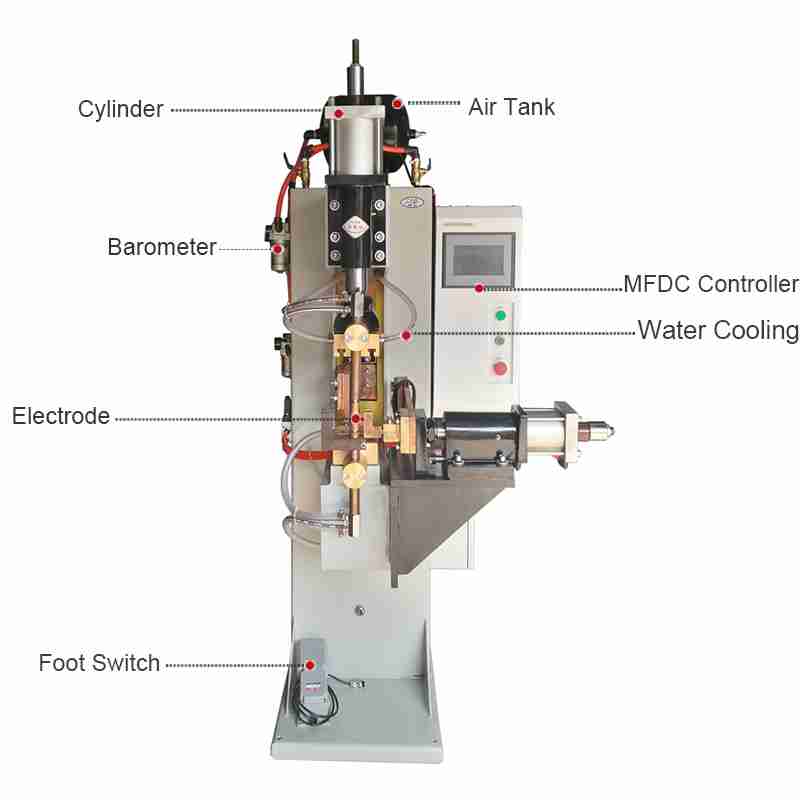

MFDC Precision Butt Welding Machine composition

Cylinder

Hydraulic unit providing actuation force for welding electrodes

Air Tank

Pressurized air reservoir for pneumatic control systems

Barometer

Measures and monitors air pressure levels.

MFDC Controller

Touch screen regulator managing welding power parameters

Electrode (CuCrZr)

Copper-chromium-zirconium tips for current transfer

Water Cooled

Thermal management system preventing overheating

Leakage Protection

Safety enclosure preventing electrical leakage hazards

Foot Switch

Operator control pedal for precise welding activation

Welding Sample
