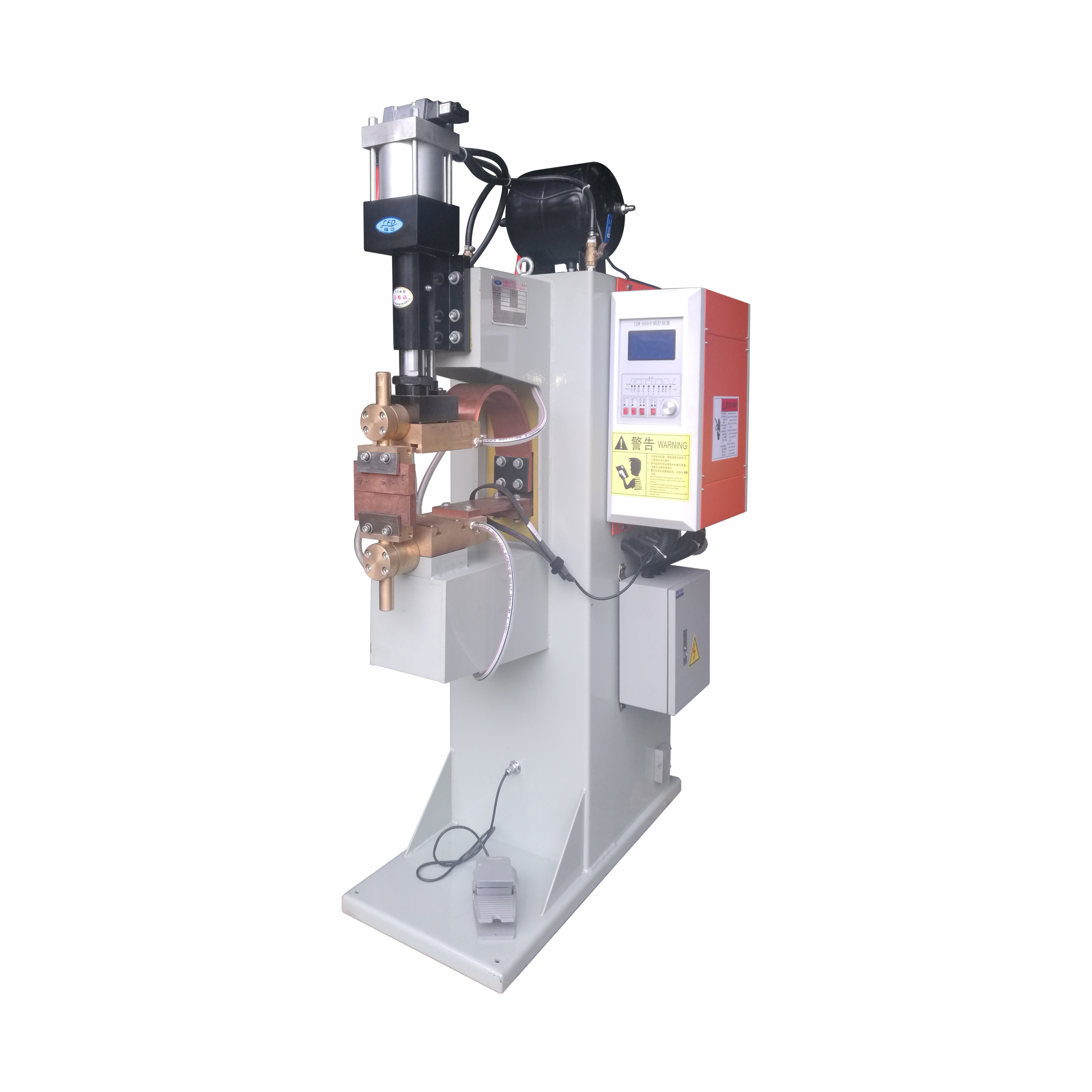

MFDC Row Welding Machine

MFDC Row Welding Machine

Precise current control & high stability

High energy efficiency

Consistent electrode force, minimal workpiece deformation

Zero-spark & mark-free

High-speed multi-point welding

Brand

FUDA

Origin

Foshan, Guangdong, China

Warranty Period

1 Years

Applicable Industries

Manufacturing Plant

Technical Advantages

MFDC Row Welder utilizes medium-frequency inverter technology to generate precise DC current across multiple synchronized electrode pairs, enabling simultaneous multi-spot welding for wire mesh/fence panels and reinforcement cages. Key advantages include superior welding consistency at high speeds and minimal heat-affected zones. Optimized for joining galvanized steel wires, carbon steels, stainless steel grids, aluminum alloy meshes, and copper-clad components.

Buying Process

1

Inquiry

2

Spec Validation

3

Order Execution

4

Logistics

Technical Specifications

Model	DIT-90QP	DIT-120QP	DIT-160QP	DIT-200QP	DIT-250QP	DIT-300QP	DIT-160Qx2P	DIT-160Qx3P
Rated Voltage	380V, 3 Phase, 50/60Hz
Rated Capacity (kVA)	90	120	160	200	250	300	160	160
Max Short Current (kA)	20	30	40	50	60	70	40	40
Inverting Frequency (Hz)	1000	1000	1000	1000	1000	1000	1000	1000
Welding Capacity (铝板/铜板 mm)	2.0+2.0	2.2+2.2	2.5+2.5	2.8+2.8	3.3+3.3	3.8+3.8	2.5+2.5	2.5+2.5
Arm Length (mm)	450	450	450	450	450	450	450	450
Max Electrode Pressure (kgf)	620	620	980	980	980	980	980	980
Electrode Stroke (mm)	60	60	60	60	60	60	60	60
Duty Cycle	20%	20%	20%	20%	20%	20%	20%	20%
Cooling Water Consumption (L/min)	12	12	12	14	14	14	12	12

* Swipe left/right or scroll horizontally to view complete specifications.

Core Components

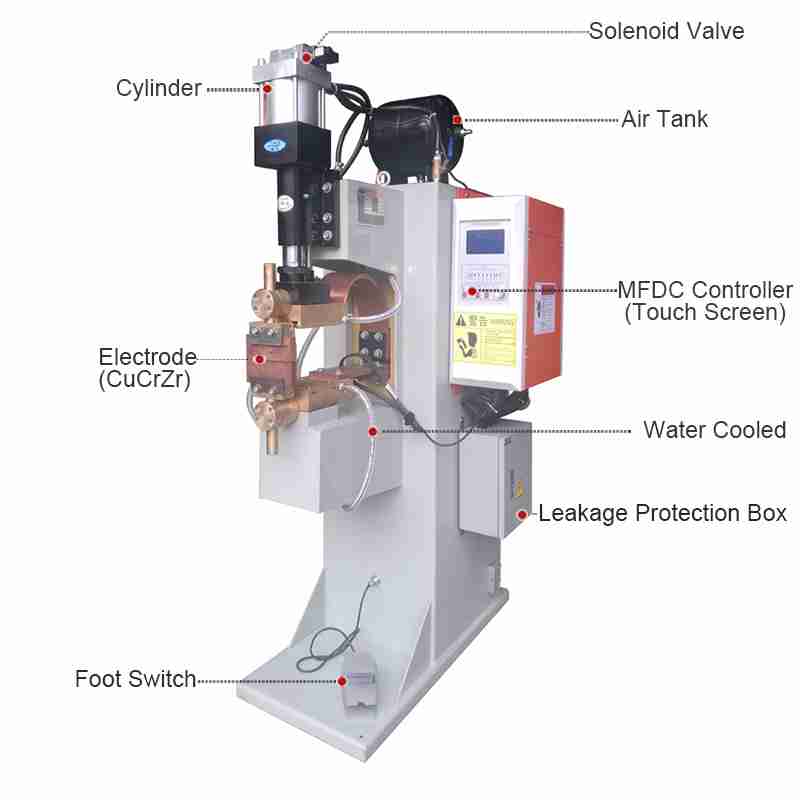

MFDC Row Welding Machine composition

Cylinder

Hydraulic unit providing actuation force for welding electrodes

Solenoid Valve

Pneumatic flow controller for actuator movement

Air Tank

Pressurized air reservoir for pneumatic control systems

MFDC Controller

Touch screen regulator managing welding power parameters

Electrode (CuCrZr)

Copper-chromium-zirconium tips for current transfer

Water Cooled

Thermal management system preventing overheating

Leakage Protection

Safety enclosure preventing electrical leakage hazards

Foot Switch

Operator control pedal for precise welding activation

Welding Sample
