seam welding machine

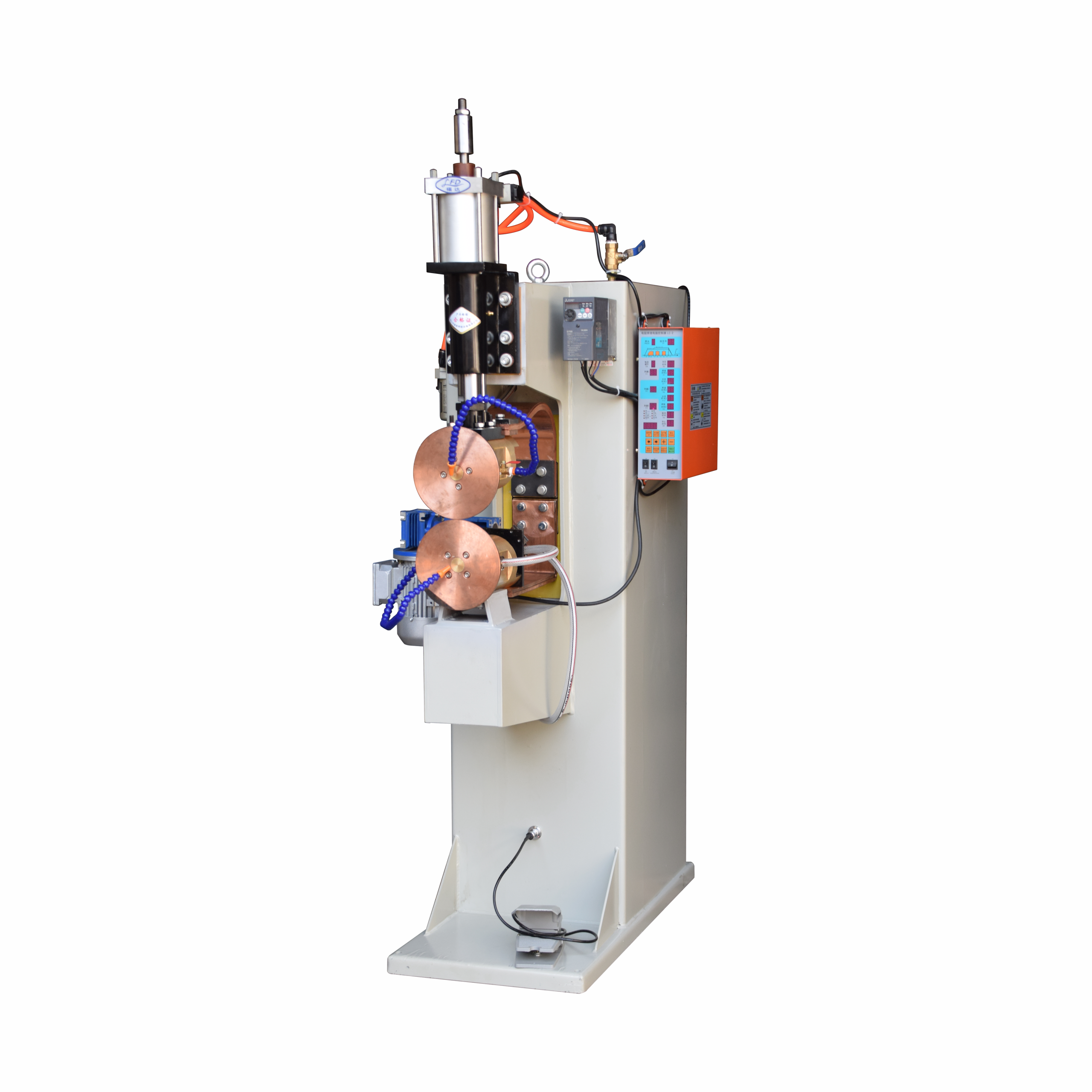

Transverse Seam Welding Machine

Hermetic sealing capability, continuous leak-free joints

Tank & pipe fabrication solution

Precision Circumferential Welding, uniform bead appearance

Simple maintenance, proven durability

Brand

FUDA

Origin

Foshan, Guangdong, China

Warranty Period

1 Years

Applicable Industries

Manufacturing Plant

Technical Advantages

AC Transverse Seam Welder employs wheel electrodes moving laterally across workpieces, using transformer-converted alternating current to create continuous circumferential sealing joints. Advantages include efficient cylindrical joining and superior pressure integrity. Essential for pressure/heat-exchange vessels, drum manufacturing, and pipe fabrication. Welds carbon steel, stainless steel, aluminum alloys, etc.

Buying Process

1

Inquiry

2

Spec Validation

3

Order Execution

4

Logistics

Technical Specifications

Parameter	FN-50QH	FN-63QH	FN-80QH	FN-100QH	FN-150QH	FN-200QH	FN-250QH
Rated Voltage	380V,2 Phase,50/60Hz	380V,2 Phase,50/60Hz	380V,2 Phase,50/60Hz	380V,2 Phase,50/60Hz	380V,2 Phase,50/60Hz	380V,2 Phase,50/60Hz	380V,2 Phase,50/60Hz
Rated Capacity	50kVA	63kVA	80kVA	100kVA	150kVA	200kVA	250kVA
Welding Capacity (stainless steel sheet)	1.0mm+1.0mm	1.2mm+1.2mm	1.5mm+1.5mm	1.8mm+1.8mm	2.0mm+2.0mm	2.2mm+2.2mm	2.5mm+2.5mm
Welding Capacity (mild steel sheet)	1.2mm+1.2mm	1.5mm+1.5mm	1.8mm+1.8mm	2.0mm+2.0mm	2.2mm+2.2mm	2.5mm+2.5mm	2.8mm+2.8mm
Arm Length	450mm	450mm	450mm	450mm	450mm	450mm	450mm
Max. Electrode Pressure	3900N	6100N	6100N	6100N	9000N	9000N	9000N
Electrode Stroke	80mm	80mm	80mm	80mm	80mm	80mm	80mm
Duty Cycle	40%	40%	40%	40%	40%	40%	40%
Water Flow	15L/min	20L/min	20L/min	20L/min	20L/min	20L/min	20L/min

* Swipe left/right or scroll horizontally to view complete specifications.

Core Components

Transverse Seam Welding Machine composition

Cylinder

Hydraulic unit providing actuation force for welding electrodes

Solenoid Valve

Pneumatic flow controller for actuator movement

Controller

Touch screen regulator managing welding power parameters

Electrode (CuCrZr)

Copper-chromium-zirconium tips for current transfer

Water Cooled

Thermal management system preventing overheating

Foot Switch

Operator control pedal for precise welding activation

Welding Sample

Transverse Seam Welding Machine for Stainless Steel — Stainless Steel

Transverse Seam Welding Machine for Wire Mesh — Wire Mesh

Transverse Seam Welding Machine for Wire Basket — Wire Basket

Transverse Seam Welding Machine for Sink — Sinks
